A unique brief for a Gazebo Design.

The client company are rotomolding manufacturers.
To broaden their product spectrum and attend to the prefabricated structure requirements, they asked us to design the roof that it can be manufactured by Rotomolding.

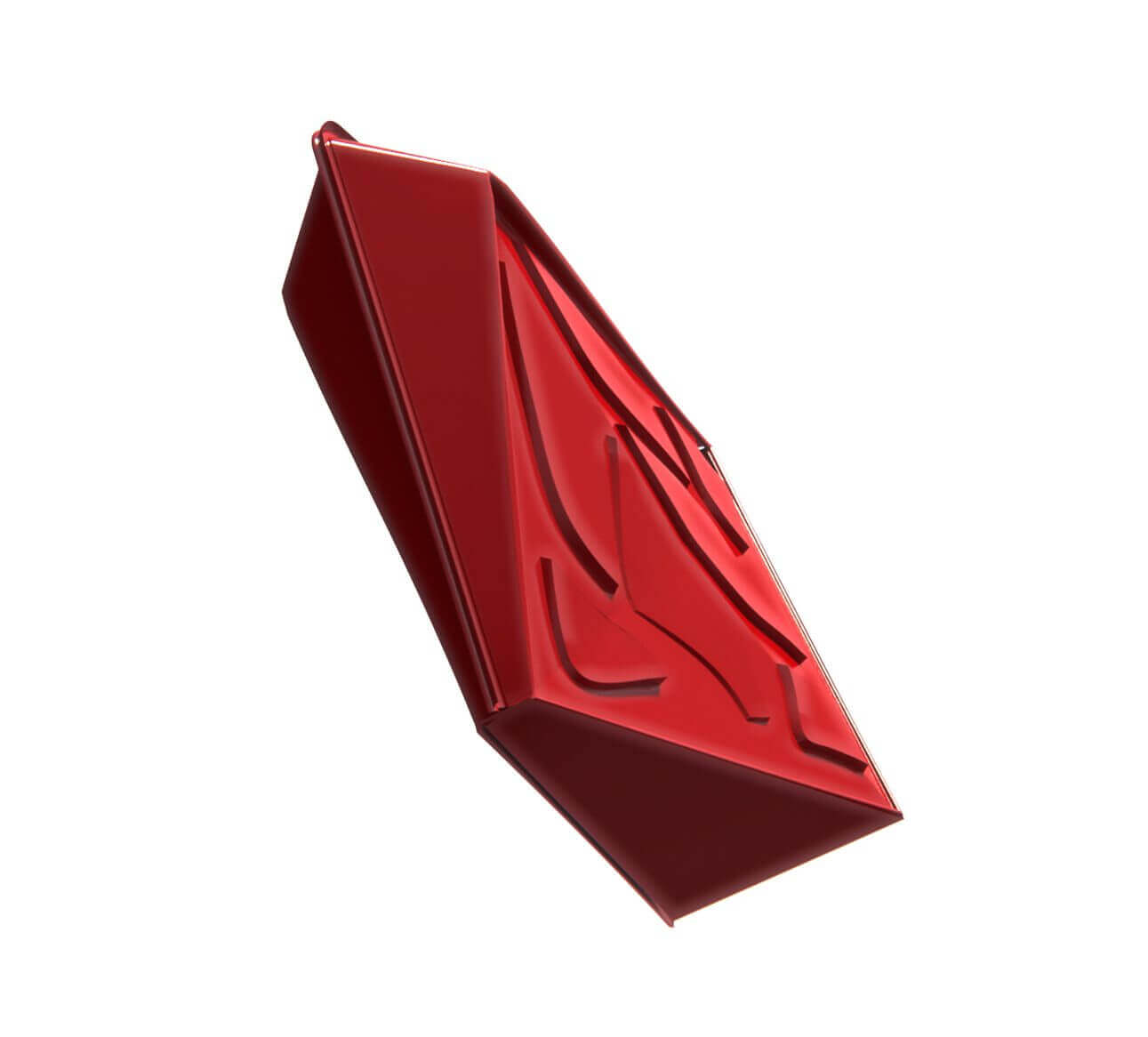

The roof is designed in 4 parts, made of 2 sets of mirror image patterns that can be manufactured at once, as a closed shell.
Structure that can be assembled on site, mass manufactured by rotomolding as the primary process, ideally, meant for weekend homes and residential plots where on site construction is prohibited.

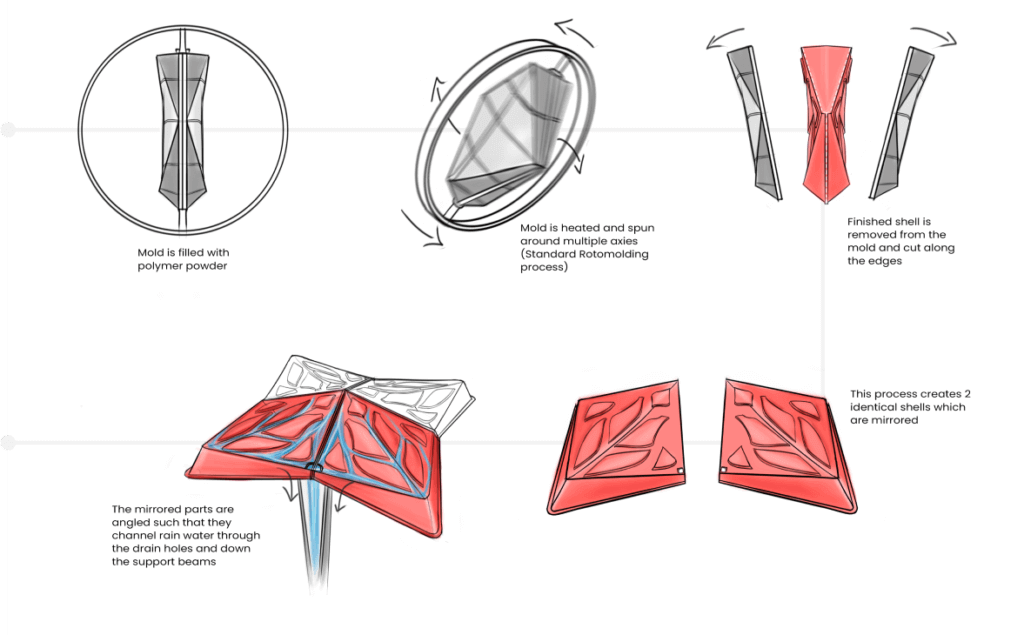

Designed for Roto molding

Modular Frame Structure

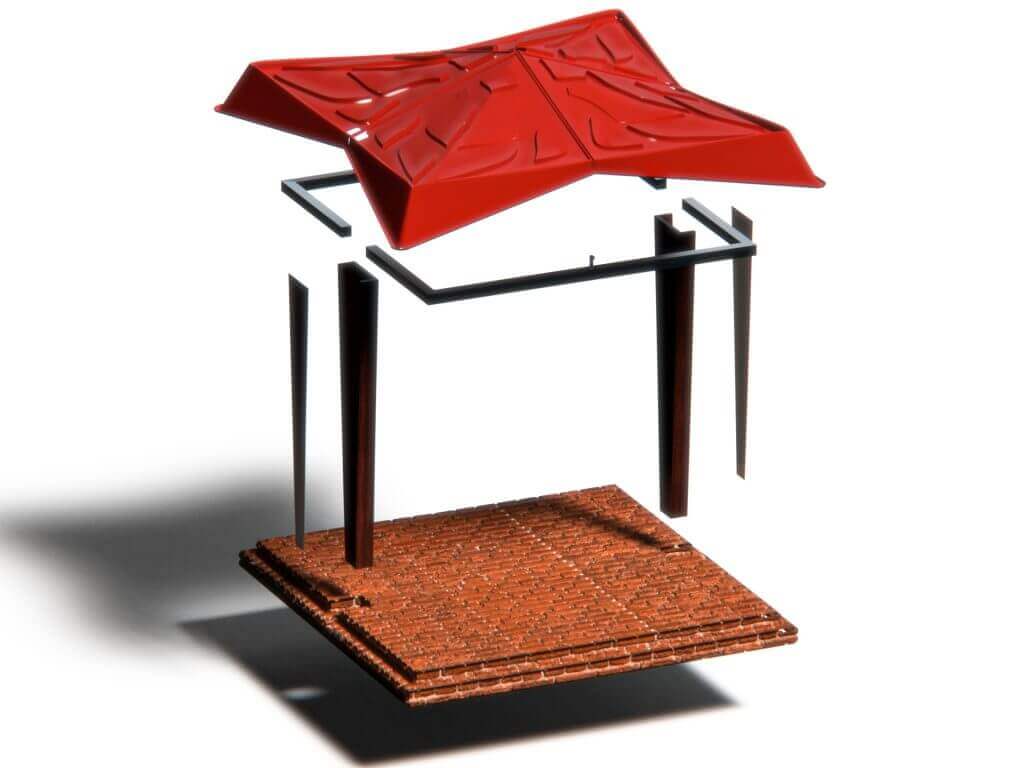

Supported on 2 columns and an underlying metal frame, the rotomolded roof rests on a structure that sits on the two C- section WPC columns.
This makes the structure, modular, light in weight, yet sturdy to stand the heavy rains and storms alike.

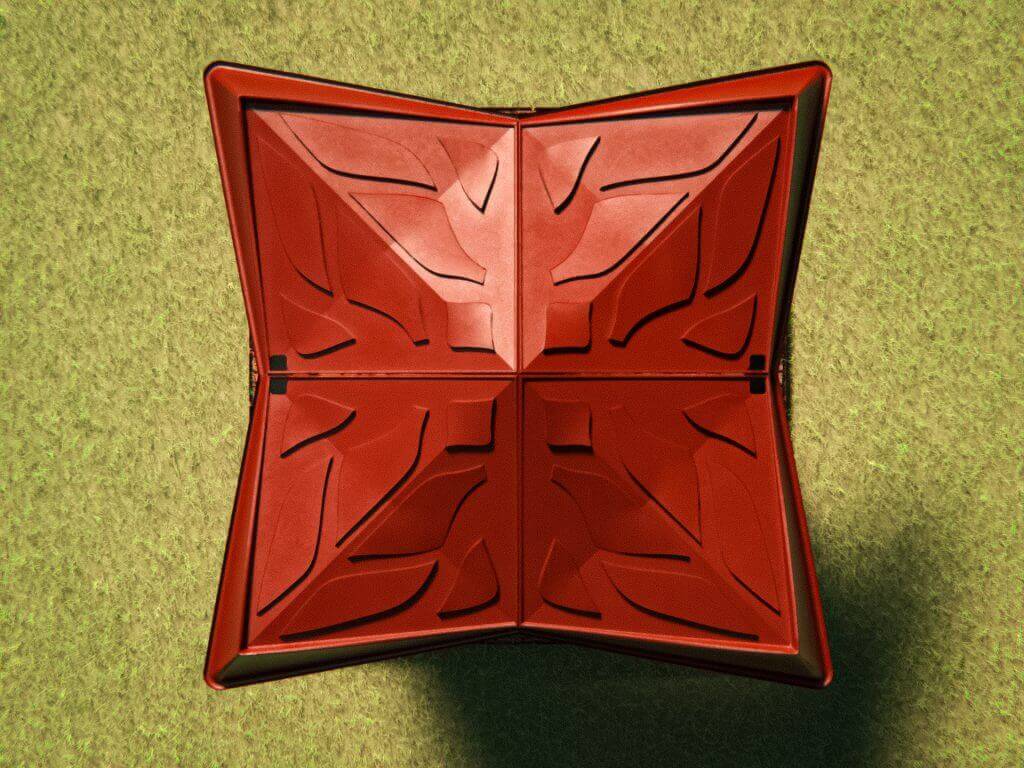

Rainwater collection through the foliage pattern

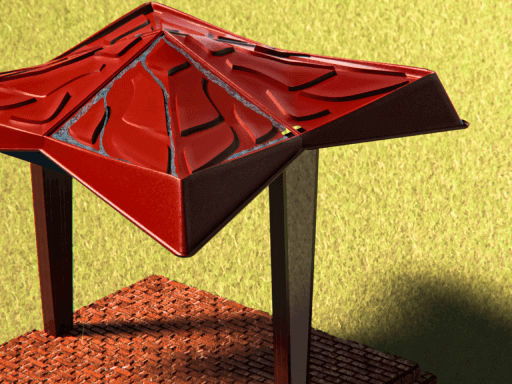

The surface of a roof depicts a foliage pattern that is designed with various slopes, such that rain water flows down through the C- sectioned columns, from the lowest point of the rotomolded module.
The C sectioned columns are enclosed and sealed with translucent polymer surface for the ater to be seen.
